企標
|
分隔線
|
型號
|
輸入
|
輸出
|
報警
|
外形尺寸
|
電源輸出
|
通信方式
|
附加功能
|
供電方式
|
說明
|
|
ATE
|
|
|
|
|
|
|
|
|
|
|
美安特儀表
|
|
|
—
|
|
|
|
|
|
|
|
|
|
無定義
|
|
|
|
XM
|
|
|
|
|
|
|
|
|

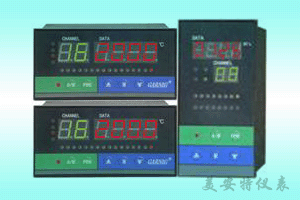

數字顯示儀表(模擬量輸入)z
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A
|
|
|
|
|
|
|
|
|
人工智能、增強型
|
|
|
|
9
|
|
|
|
|
|
|
|
|
設計序號
|
|
|
|
|
0
|
|
|
|
|
|
|
|
線性電阻：0-400Ω
|
|
|
|
|
1
|
|
|
|
|
|
|
|
熱電偶分度號：K、E、S、B、J、T、N、EA
|
|
|
|
|
2
|
|
|
|
|
|
|
|
熱電阻分度號：Pu100、BA1、BA2、Cu100、Cu50
|
|
|
|
|
3
|
|
|
|
|
|
|
|
線性電流：0-10mA、4-20mA
|
|
|
|
|
4
|
|
|
|
|
|
|
|
線性電壓：0-20mV、0-50mV、0-200mV、0-5V、1-5V
|
|
|
|
|
5
|
|
|
|
|
|
|
|
二線制變送器：4-20mA
|
|
|
|
|
6
|
|
|
|
|
|
|
|
頻率信號：0.01-1000Hz
|
|
|
|
|
9
|
|
|
|
|
|
|
|
全信號輸入（包括1-5全部）
|
|
|
|
|
|
0
|
|
|
|
|
|
|
無模擬輸出
|
|
|
|
|
|
1
|
|
|
|
|
|
|
4-20mA、DC1-5V
|
|
|
|
|
|
2
|
|
|
|
|
|
|
0-10mA、DC1-5V
|
|
|
|
|
|
|
0
|
|
|
|
|
|
無報警
|
|
|
|
|
|
|
1
|
|
|
|
|
|
一路報警
|
|
|
|
|
|
|
2
|
|
|
|
|
|
二路報警
|
|
|
|
|
|
|
3
|
|
|
|
|
|
三路報警
|
|
|
|
|
|
|
9
|
|
|
|
|
|
四路報警
|
|
|
|
|
|
|
|
B
|
|
|
|
|
面板尺寸160×80開孔152×76
|
|
|
|
|
|
|
|
F
|
|
|
|
|
面板尺寸96×96開孔92×92
|
|
|
|
|
|
|
|
H
|
|
|
|
|
面板尺寸80×160開孔76×152
|
|
|
|
|
|
|
|
I
|
|
|
|
|
面板尺寸72×72開孔68×68
|
|
|
|
|
|
|
|
|
N
|
|
|
|
無饋電輸出(可省略)
|
|
|
|
|
|
|
|
|
P
|
|
|
|
有24V.DC輸出
|
|
|
|
|
|
|
|
|
|
0
|
|
|
無通訊（可省略）
|
|
|
|
|
|
|
|
|
|
1
|
|
|
RS485/RS232通信接口
|
|
|
|
|
|
|
|
|
|
|
U
|
|
常規儀表(可省略)
|
|
|
|
|
|
|
|
|
|
|
G
|
|
帶光柱指示
|
|
|
|
|
|
|
|
|
|
|
S
|
|
雙信號輸入
|
|
|
|
|
|
|
|
|
|
|
K
|
|
開方方式顯示
|
|
|
|
|
|
|
|
|
|
|
|
W
|
DC 24V供電
|
|
|
|
|
|
|
|
|
|
|
|
T
|
開關電源
|
|
|
|
|
|
|
|
|
|
|
|
M
|
220V/AC（可省略）
|
|
ATE-XMTA-1-1-0-B
|
完整選型規格
|
||||||||||
